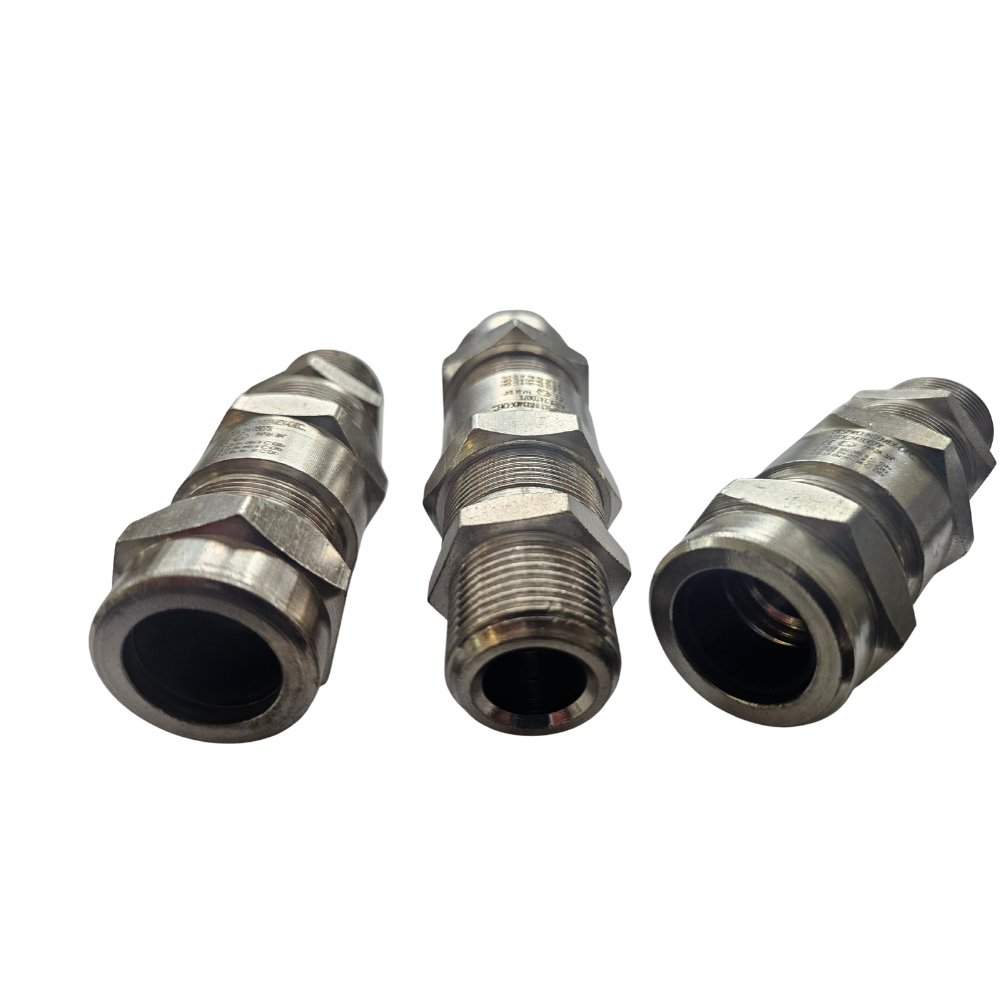

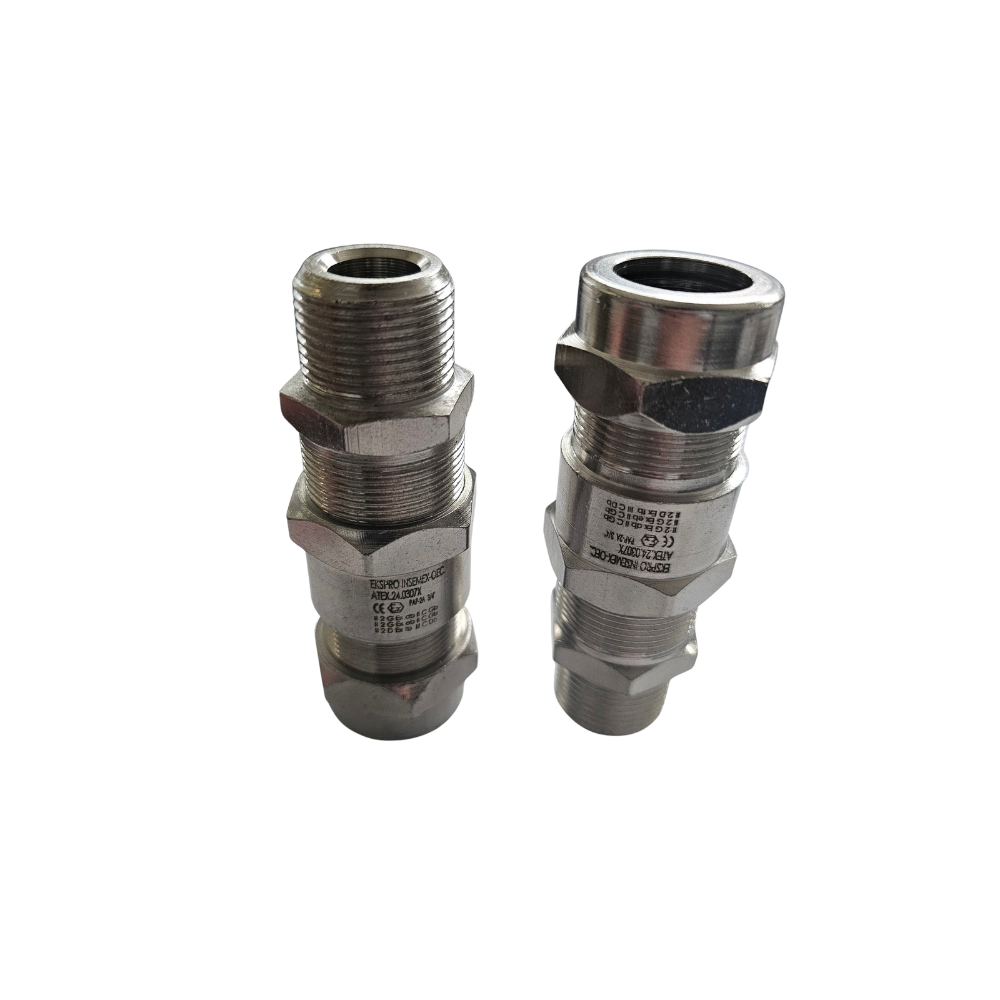

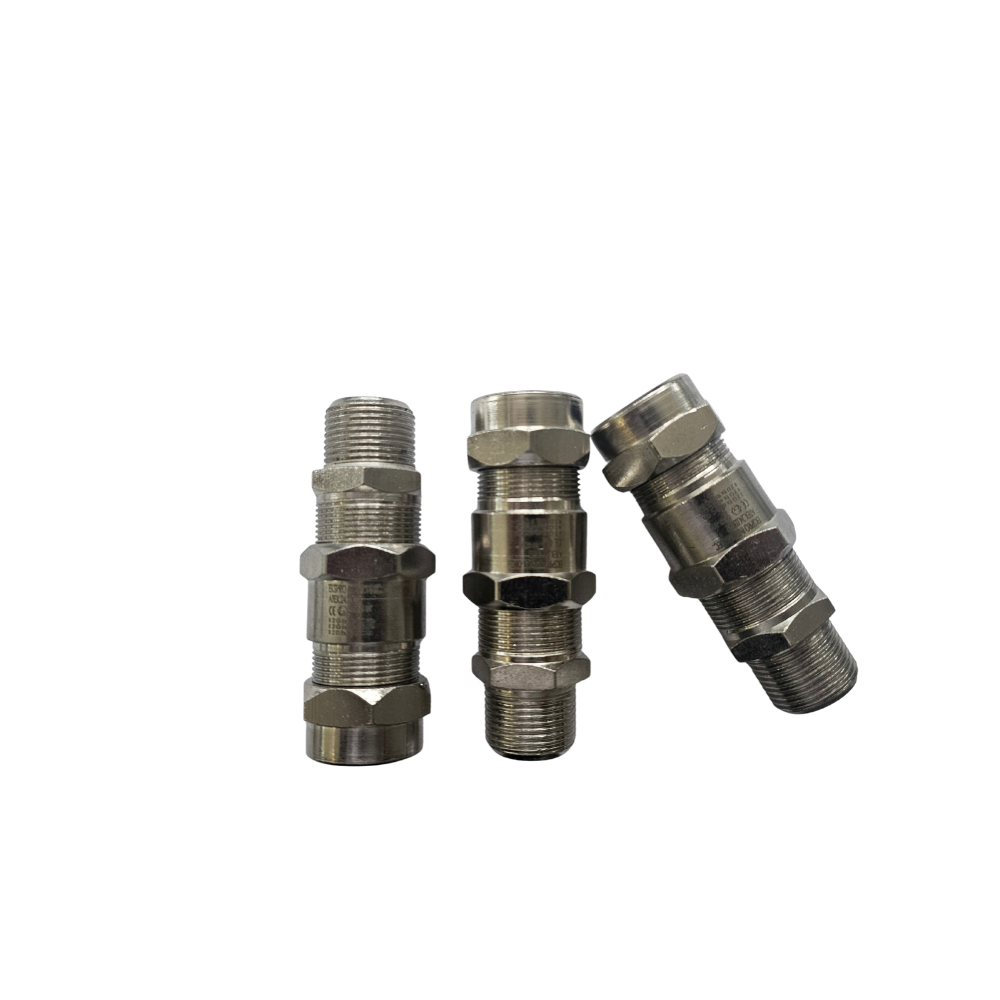

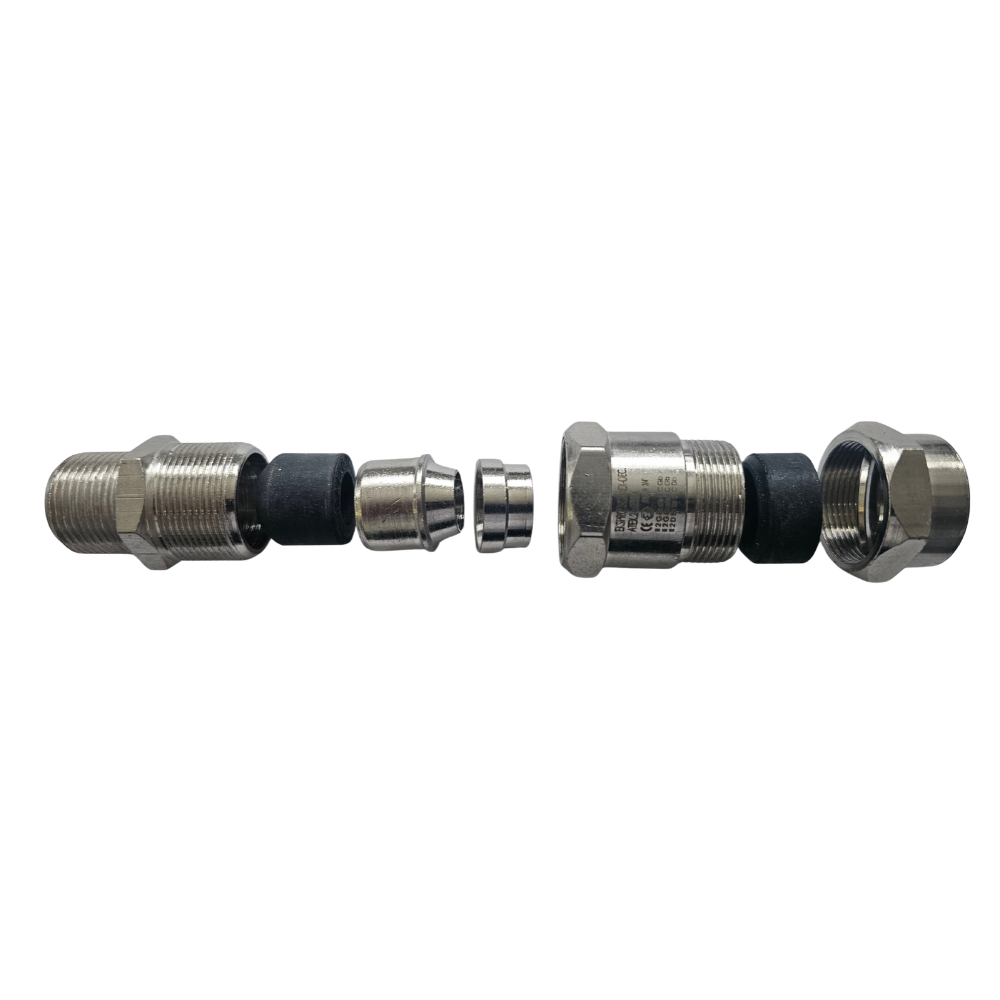

PAP Series Ex-Proof Armored Cable Gland

PAP series ex-proof cable glands are suitable for use in Zone-1, Zone-21, Zone-2, and Zone-22 ex-proof environments. They are used in the input-output connections of ex-proof equipment and for armored cable connections. They are manufactured with metric, gas pipe thread (BSP), and NPT threads.

TECHNICAL SPECIFICATIONS

ATEX Certificate: INSEMEX-OEC.ATEX.18.0342X
Equipment Protection Level (Gas): II 2 G Ex d IIC T6 Gb
Equipment Protection Level (Dust): II 2 D Ex tb IIIC T80°C Db
Ingress Protection (IP): IP 66
Applicable Zones: Zone-1, Zone-2, Zone-21, Zone-22

Category:Group II Industrial Products Tags:armored cable gland, atex certified gland, ekspro, ex-proof cable gland, ip66 cable gland, metric cable gland, npt cable gland, pap series gland, zone 1 cable gland, zone 2 cable gland

Description

Description

PAP Series Ex-Proof Armored Cable Glands are designed for reliable and secure armored cable connections in hazardous environments.

• Applications: Suitable for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas
• Cable Type: Designed specifically for armored cable entry and clamping
• Thread Options: Manufactured with Metric, Gas Thread (BSP), and NPT options
• Protection & Certificate: IP66 protection rating and ATEX certified
